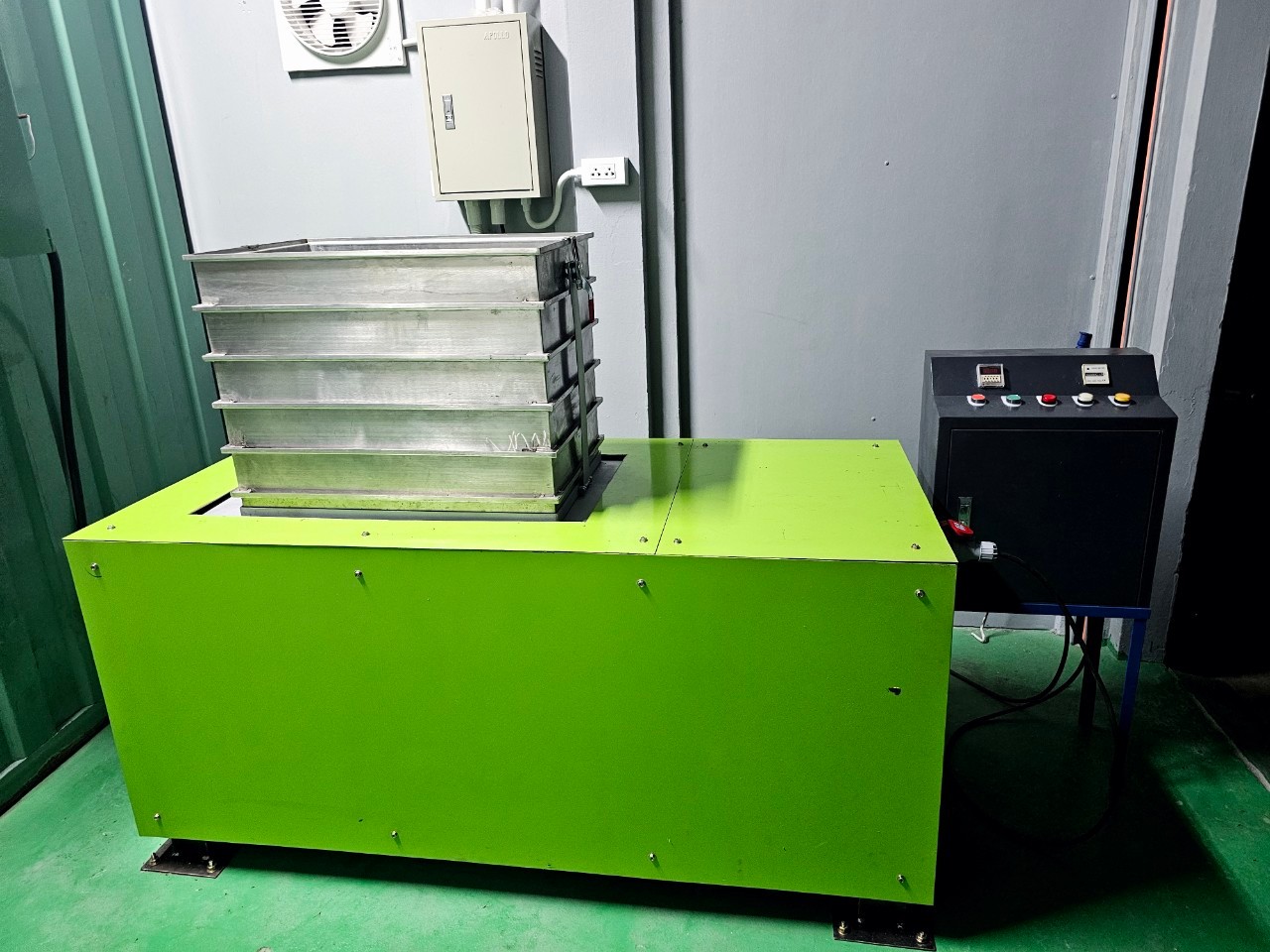

Woodchip classifier model WCC-1 The Chip Classifier Model CC-1 is a robust, precision-engineered solution for accurate chip size distribution analysis. Designed for industrial laboratories, it supports multiple international standards and ensures reliable, repeatable results for quality control in wood processing and bioenergy applications.

For industries: Pulp and paper, Bioenergy

Key specifications

Parameter	Value
Sample Volume	8–10 Liters
Dimensions (W × L × H)	60 × 160 × 120 cm
Tray Dimensions	650 × 400 × 90 mm
Stroke Amplitude	120 ± 2 mm
Stroke Frequency	160 ± 10 cycles per minute
Power Supply	380V / 3-Phase / 50Hz (10A)
Weight	250 kg

Standard & Optional trays

Installed trays (Standard): Compliant with TAPPI UM-214

• 40.0 mm
• 28.6 mm
• 22.2 mm
• 9.5 mm
• 4.8 mm
• Fines pan (undersized fraction)

Optional trays (Available on Request):

• SCAN 40:41
• ISO 17225-4
• EN 14961-4
• Williams Standard
• WPFL Standard

Design & Manufacturing

• Engineered and manufactured to order
• Supports multi-standard operation (TAPPI, SCAN, ISO, etc.)
• Robust construction for long-term industrial use
• Easy installation and integration into lab workflows

Applications

• Chip size distribution analysis
• Quality control in pulp and paper production
• Biomass fuel classification for bioenergy plants
• Wood procurement and processing validation
